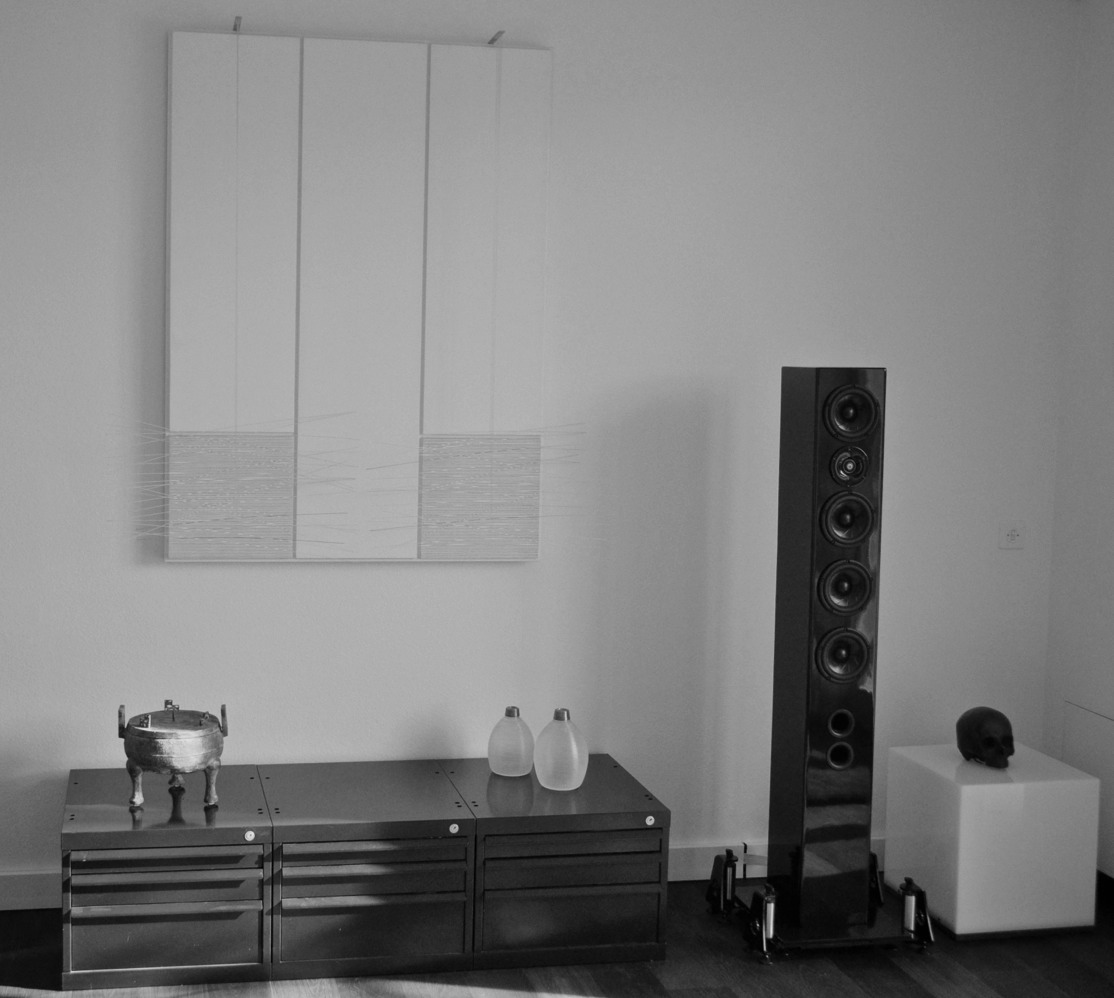

Credo Audio System - CS 145 Ref.
Big loudspeaker, big sound
With remarkable 145 cm in height, this speaker plays at large. The speaker works as a line source of sound, such as they are used at concerts in large halls or at open air events.
-
Caption Text
Link
In large rooms and at great listening distance, a line-source offers some advantages over a point source.
Specifications:
- Chassis: 1" textile (coated) dome-tweeter; 4 x 5.25“ mid woofer sliced paper
- Tuning: Bass reflex (front)
- Crossover: 2. way proprietary filter-topology (external!)
- Frequency response: 24 Hz - 20 kHz, +/ -3dB, additional 2 dB SPL for 2 - 20 kHz selectable
- Sensitivity: 89.7 dB SPL @ 2.83V @ 1m
- Impedance: nominal 3 Ohm, minimal 2.1 Ohm at 42 Hz
- Recommended amplifier output: 180 - 400 W RMS
- Weight: 72 kg per pc. without packing
- Size (h x d x w): 145 cm x 22 cm x 18 cm
