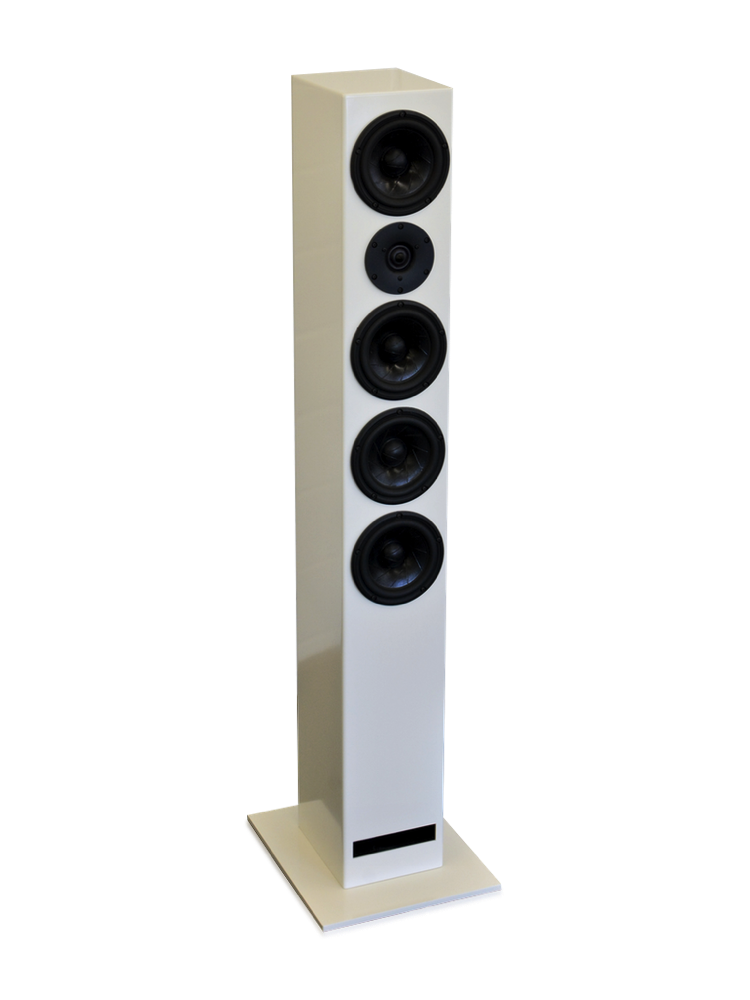

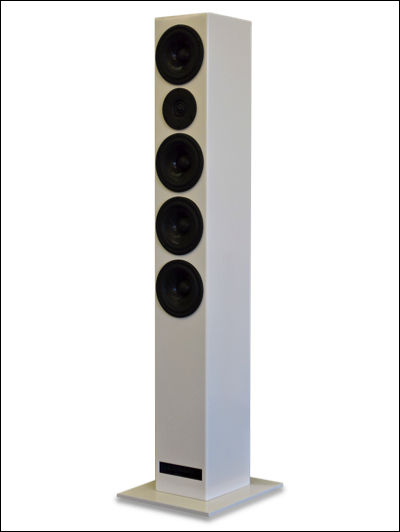

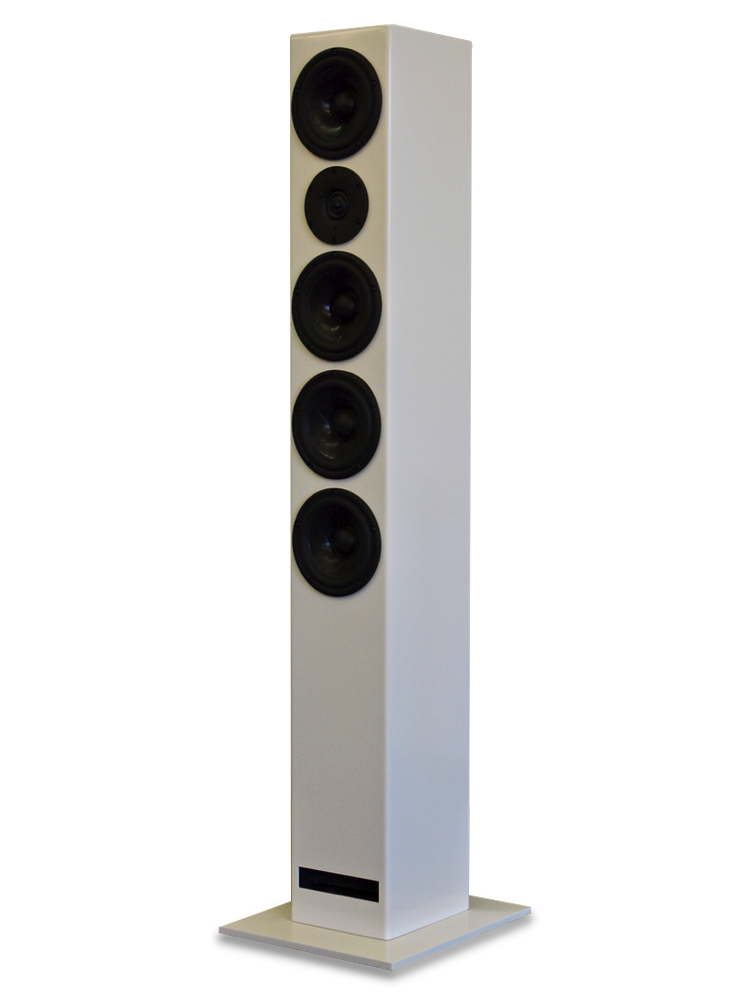

Credo Audio System - CS 125 Ref.
A class of its own! For many years we are known for our elegant-looking speakers. Which does not mean that they are not "real high-end speakers"!

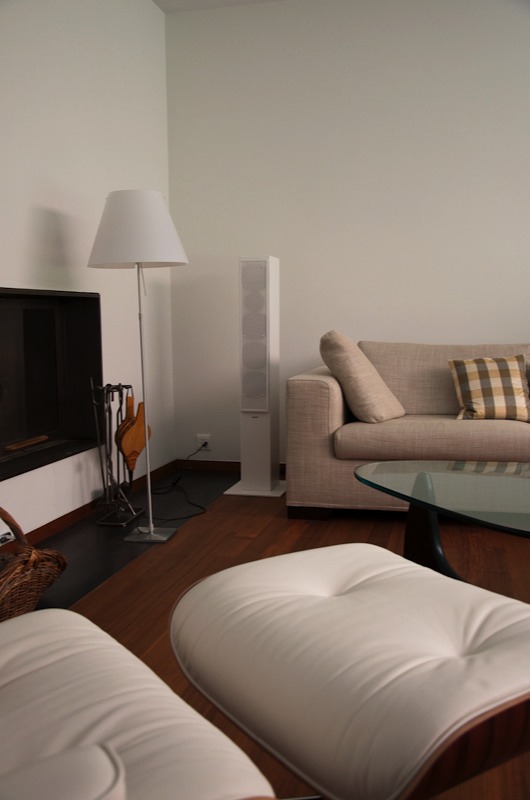

The smaller models of the CS series are highly appreciated by our clients for their slim and sleek form. The integration into the living room usually is outstanding.
The new reference version of the CS 125 model was completely new developed from the ground up, including the new cabinet with wall thickness of 6 mm stainless steel.
What we had in mind for this product was - no compromises! We were looking for the maximum of performance we could get.
Impressive, well balanced sound:
This loudspeaker will sound great in bigger rooms and moderate or even great listening distances. The well balances sound dispersion makes it a very linear speaker, even off-axis.
Crossover:
Through our unique crossover, which was set up exclusively with premium components, it was possible to realize a loudspeaker with really impressive frequency range. A clear and transparent sound is the result.
The CS 125 Ref comes with an external crossover, you can decide between several terminal- and cable-options. The tweeter can be adjusted to your acoustic environment, optional 2 dB SPL from 2 - 20 kHz can be selected at the crossover.
Specifications:

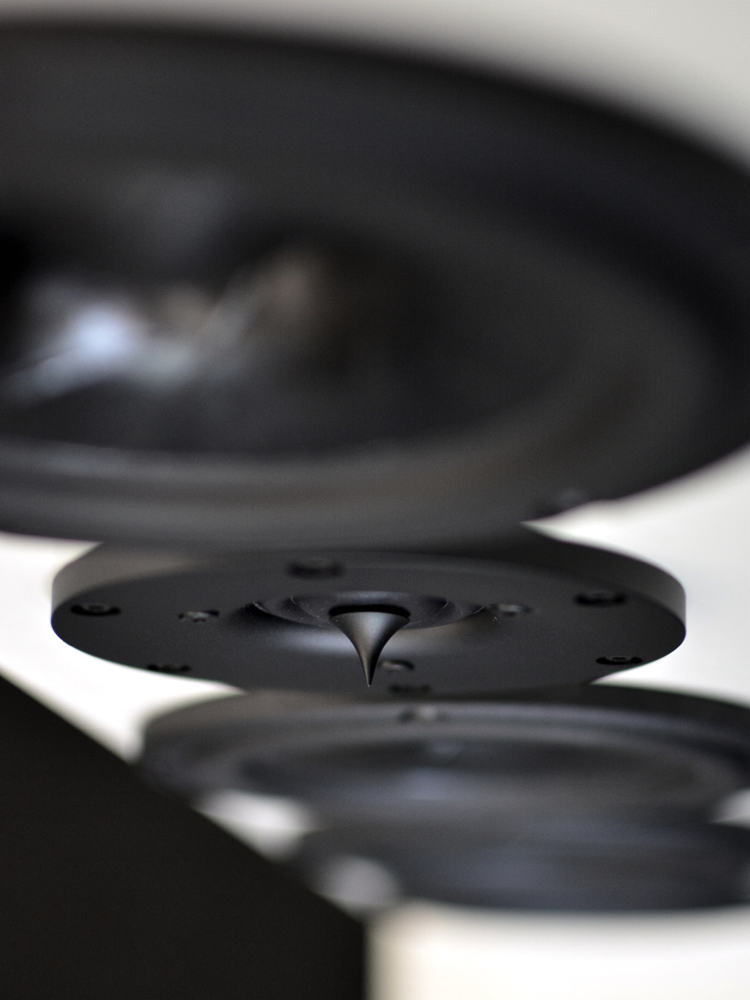

- Chassis: 1" textile (coated) dome-tweeter; 4 x 5.25“ mid woofer sliced-paper
- Tuning: Bass reflex (front)
- Crossover: 2-way proprietary filter-design (external!)
- Frequency response: 28 Hz - 20 kHz, +/- 3dB
- Selectable gain of +2 dB SPL from 2 - 20 kHz
- Sensitivity: 89.7 dB SPL@2.83V @1 m (semi-reverberant room)
- Impedanz: nominal 3 ohms, minimal 2.3Ohm at 43 Hz
- Recommended amplifier: 150 - 400 W RMS
- Weight: 64 kg per pc. without packing
- Dimensions: 124 x 17 x 20 cm (h x w x d)
