Credo integrated amplifier - IMP 702 & 703


At Credo we believe

that you do not necessarily have to spend a fortune on a stereo system to enjoy music. And many people may not have the space nor the decor to use huge amplifiers. That is why we have designed the Integrated Amplifier.

For the Integrated Amplifier we have carefully selected all the components. These include an oversized transformer, a current mirror design and careful protection against short- circuits, overload and over-heating.

The result is high power output that guarantees a lifelike sound with tactile bass and a stable soundstage. The handsome design has a ten millimeter thick aluminum front plate.

Today, a lot of people use CD`s ore other digital sources as material so we have not included a phono stage in the Integrated Amp IMP 702. Yet for those music lovers that enjoy their vinyl records, and we count ourselves amongst those, we have included a phono stage in our model IMP 703.

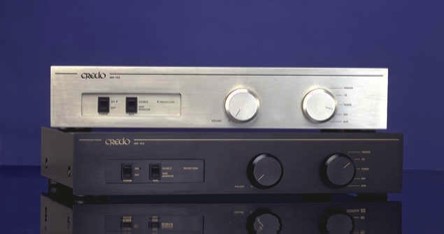

Credo integrated amp made in switzerland

Specifications:

  • Music Power Output: 70 watts per channel at 8 Ohms and 140 watts per channel at 4 Ohms
  • Peak Power Output, 200 watts per channel at 8 Ohms
  • Bandwidth: 5 Hz - 200 kHz, +0dB/-3dB
  • Frequency Response: 20 Hz - 40 kHz at 1/2 power output
  • Signal to Noise Ratio: 80 dB unweighted, 1V input / 0V input
  • THD: >0.1%
  • Input Sensitivity: 1 Volt for full power output
  • Inputs: 5 high level Inputs >10k Ohms
  • Power Consumption: max. 160 VA - min. 10 VA in stand-by position
  • Line voltage: 220 - 240V, 2 A slow blow fuse
  • Dimensions: 440 x 85 x 305mm
  • Weight: 9 kg
  • Shipping Weight: 10.5 kg
Lieferbar auf Anfrage:

Unseren IMP 702 & 703 fertigen wir gerne auf Bestellung.
