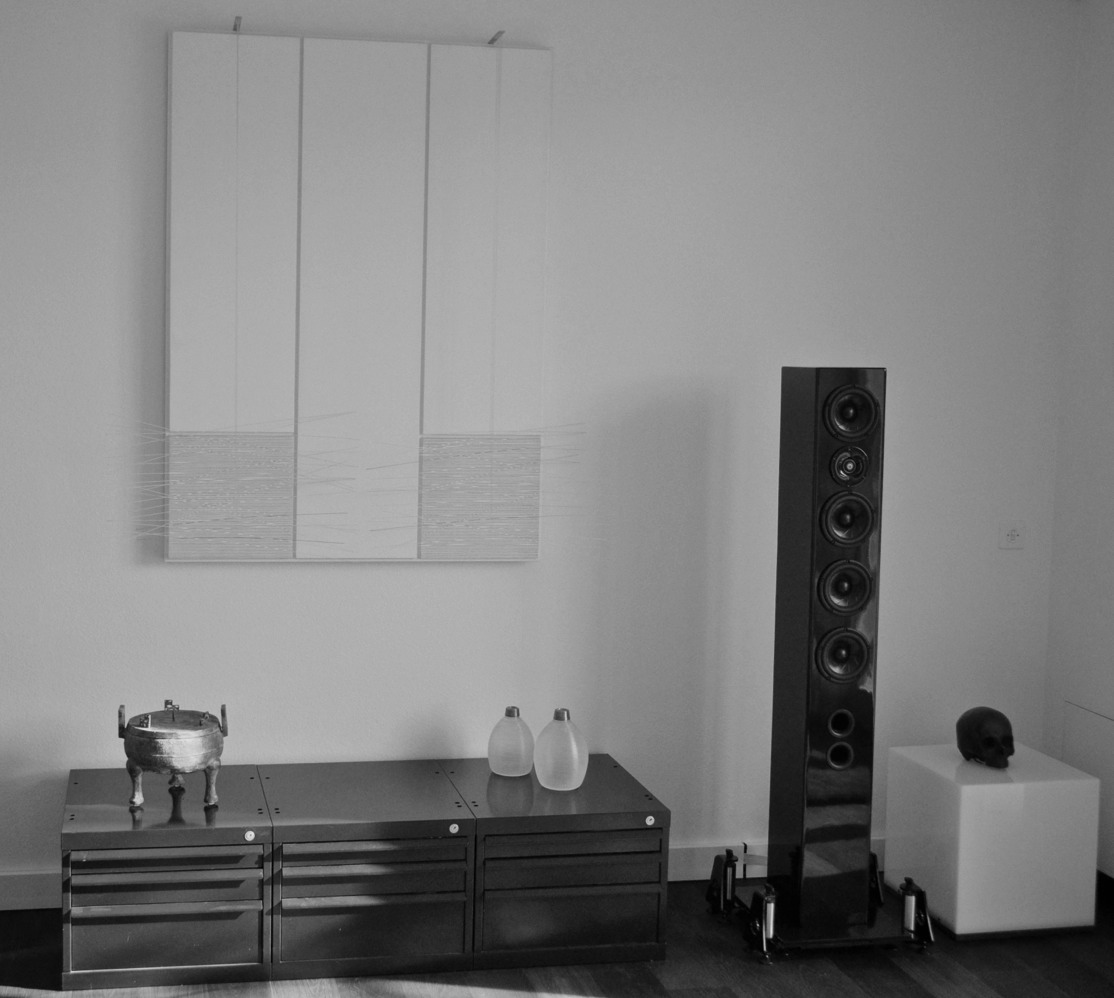

Credo Audio System - CS 145 Ref.
Big loudspeaker, big sound
With remarkable 145 cm in height, this speaker plays at large. The speaker works as a line source of sound, such as they are used at concerts in large halls or at open air events.
Caption Text
Link
Load the brochure and specifications
In large rooms and at great listening distance, a line-source offers some advantages over a point source.
Specifications:
Chassis: 1" textile (coated) dome-tweeter; 4 x 5.25“ mid woofer sliced paper
Tuning: Bass reflex (front)
Crossover: 2. way proprietary filter-topology (external!)
Frequency response: 24 Hz - 20 kHz, +/ -3dB, additional 2 dB SPL for 2 - 20 kHz selectable
Sensitivity: 89.7 dB SPL @ 2.83V @ 1m
Impedance: nominal 3 Ohm, minimal 2.1 Ohm at 42 Hz
Recommended amplifier output: 180 - 400 W RMS
Weight: 72 kg per pc. without packing
Size (h x d x w): 145 cm x 22 cm x 18 cm
